1 Fan Replaces 48 Traditional Fans | Saves 70% Energy | 15-Year Maintenance-Free
▲ Free Installation Design with Inquiry Today ▲

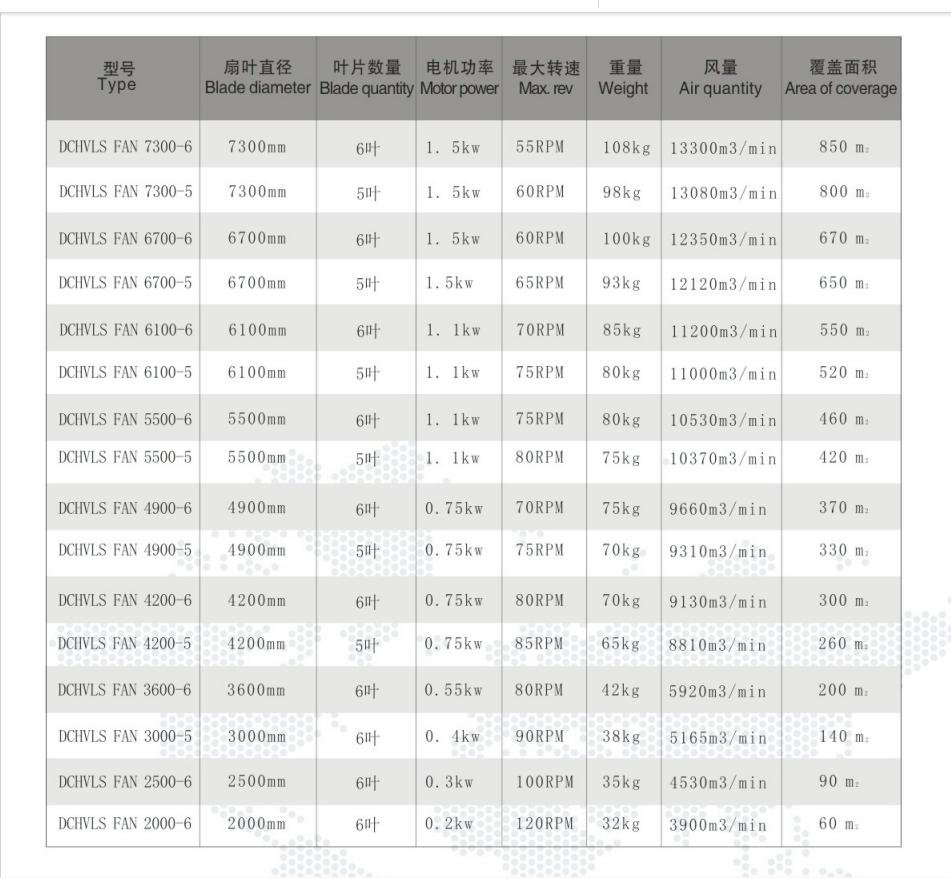

Model Selector
| Model | Diameter | Power | Coverage | Action |
|---|---|---|---|---|
| 7300-6 | 7.3m | 1.5kW | 850㎡ | [Quote Now] |
| 6100-5 | 6.1m | 1.1kW | 520㎡ | [Quote Now] |

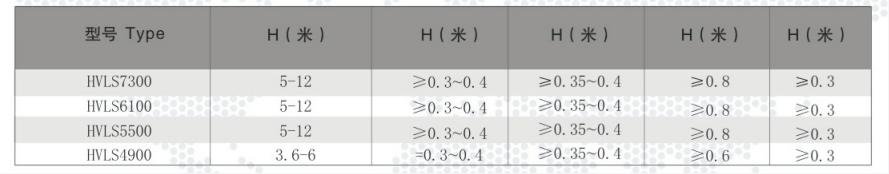

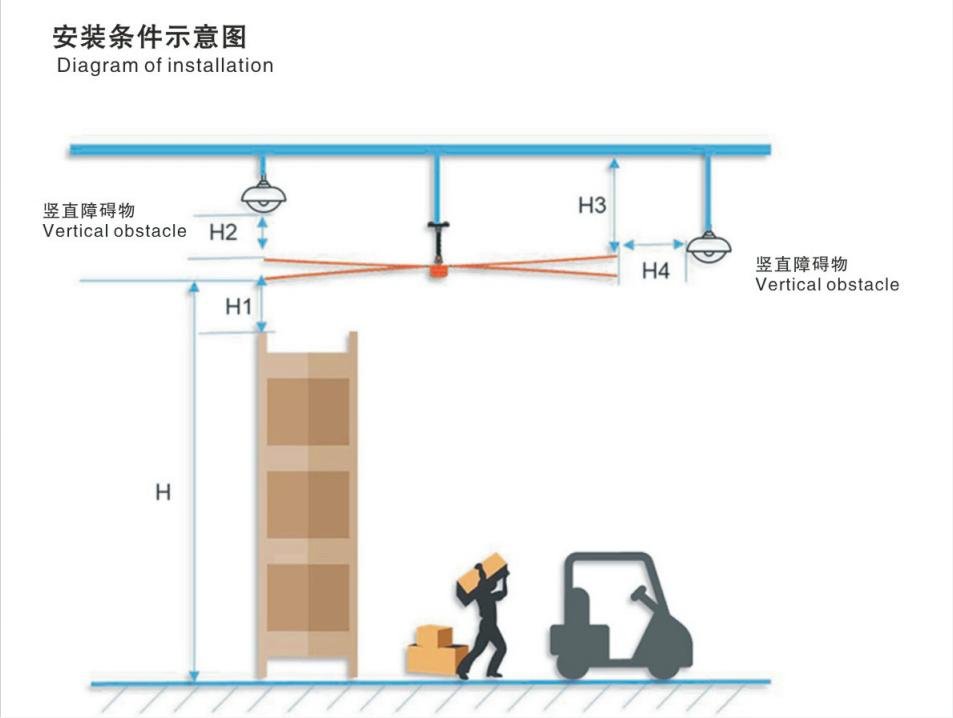

Refer to the diagram for safe clearance distances (H1-H4). Compatible with steel/concrete/truss structures, adjustable mounting height: 5-12m.

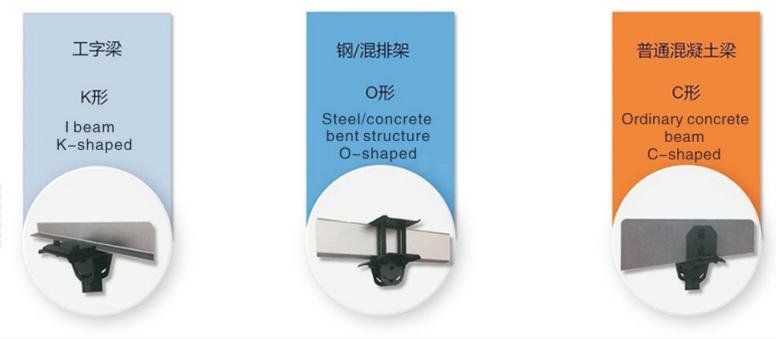

Installation Options
Compatible with all standard building structures
1. I-Beam Mounting
Type: K-shaped clamp
Material: Heavy-duty steel
2. Steel/Concrete Hybrid
Type: O-shaped bracket
Material: Reinforced alloy
3. Standard Concrete Beam
Type: C-shaped anchor
Material: Corrosion-resistant steel
Typical Applications
Logistics & Warehousing
Factories & Workshops
Airports & Wharves
Shopping Malls
Stadiums
Farms
Our Commitments
Quality Assurance – All products undergo strict factory testing
Genuine Product Guarantee – Direct manufacturer certification
Official Invoice Provided – Compliant with international trade standards
Reliable After-Sales – Technical support & spare parts supply
Product Warranty
Our HVLS fans feature patented permanent magnet direct-drive technology, delivering:
✓ High torque with ultra-low temperature rise
✓ Maintenance-free operation
✓ 15+ years design lifespan
